1.Brand of Motor: Siemens. it is frequency and has thick copper coil, it won’t be burned due to instantaneous current.
2.Brand of Electric Components: Delixi. international famous brand, has many after-sales sites, can ensure the quality and after-sales timely.
3.Brand of Frequency Converter: INVT
4.Brand of Bearing: HRB workshop.
5.Various Raw Material: wood, sawdust, shavings, agricultural straw, alfalfa, efb fiber etc.
6.Material of sawdust dryer: Q235 carbon steel， total weight: 10t-30t

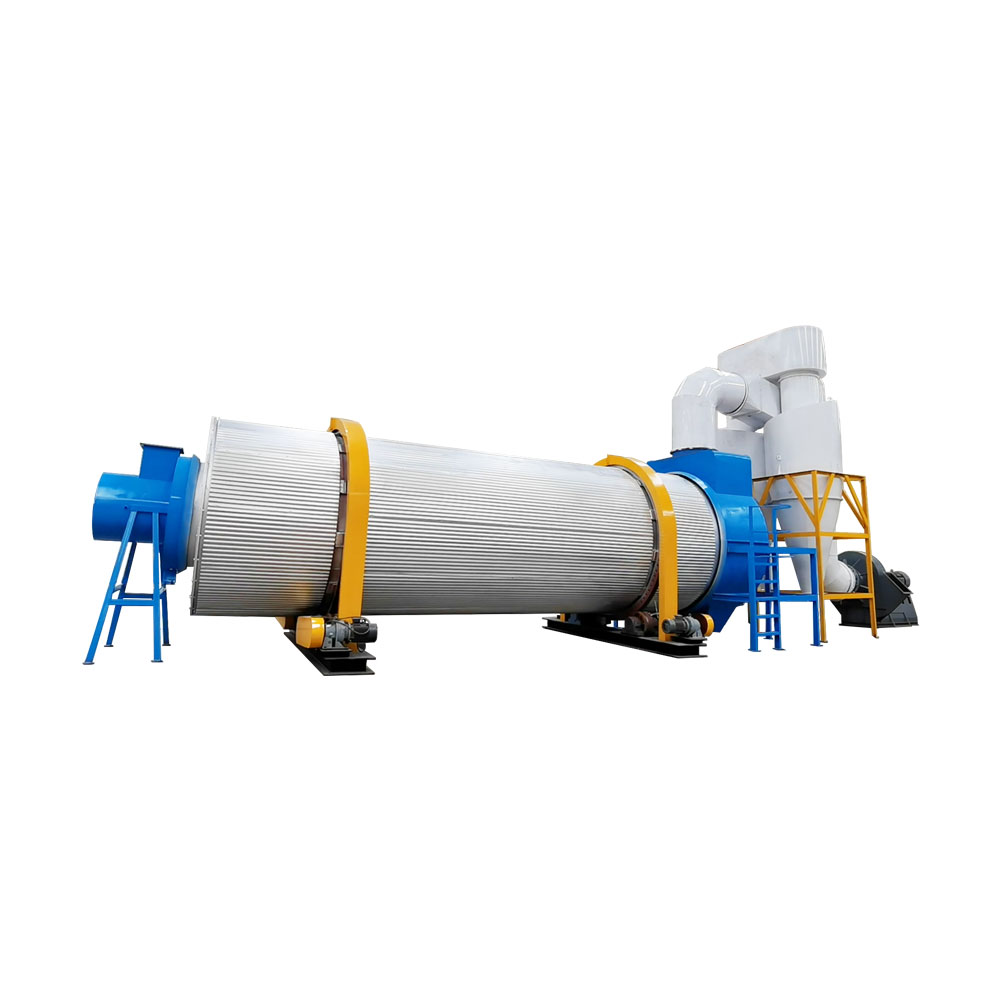

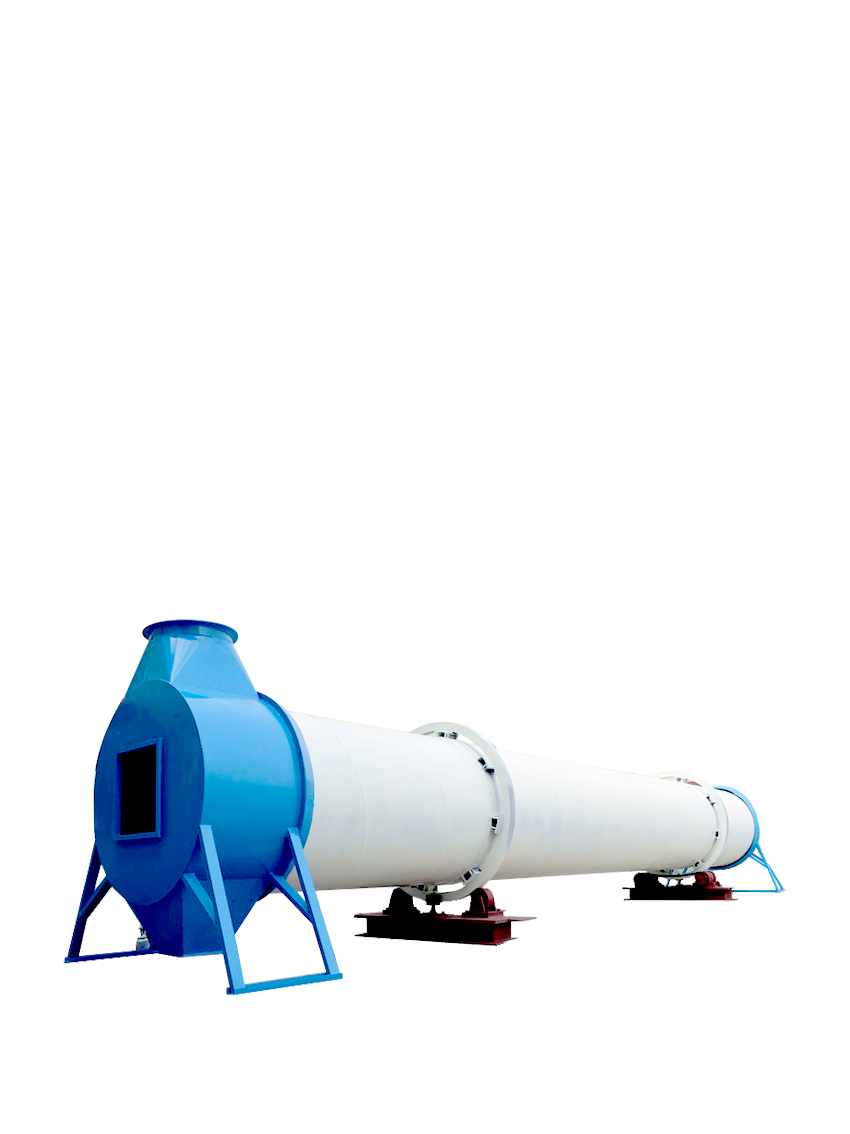

Design of rotary dryer:
spiral plate weld design, accord with welding rule, rotary dryer won't easily crack and deformation.
Thickness of wood chips rotary dryer: 18-20mm
Advantage: long using life.
Strong bearing base of rotary dryer, run steadily
The stove of sawdust rotary drum dryer consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall. Reasonable design can avoid open flame. So rotary dryer runs steadily, safely and have long life.
|
model |
Power(kw) |
Evaporation(t/h) |
Thickness(mm) |
|
GHG1.2*12*1 |
5.5+7.5+3 |
0.27-0.45 |
10-12 |
|
GHG1.5*12*1 |
7.5+18.5+4 |
0.42-0.85 |
10-12 |
|
GHG1.8*12*3 |
5.5+18.5+4 |
0.42-0.85 |
10-12 |
|
GHG1.8*18*1 |
11+30+4+4 |
1 |
10-12 |
|
GHG2.0*24*1 |
11+22+4 |
1 |
10-12 |
|
GHG2.2*12*1 |
11+37+7.5 |
1-3 |
14-18 |
|
GHG2.2*12*3 |
11+22+4 |
1.2 |
14-18 |
|
GHG2.2*24*1 |
11+45+4+4 |
1.5 |
14-18 |
|
GHG2.8*12*3 |
15+37+5.5 |
1.82-3.65 |
20-24 |
|
GHG3.0*12*3 |
22+55+5.5+7.5 |
2.5 |
20-24 |
