MODEL |
YGKJ560-B |
YGKJ700 |
YGKJ880 |
|
Power(kw) |
90/100 |
132/160 |
220 |
|
Capacity(t/h) |
1.3-1.5 |
2-3 |
3-4 |
|
Pellet Size(mm) |
6-12 |
6-12 |
6-12 |
|
Dimension(mm) |
2200*1300*1600 |
2400*1400*1800 |
2800*1500*2300 |
|
Weight(t) |
5.8 |
7.8 |
12 |
1.High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
2.Independent lubrication and non-independent lubrication can be switched.
3.Reducer drive strengthen.
The gearbox adopts independent research and development big gear with 3 level drive , module increased , gear strengths increased , The gears in gearbox quality assurance for five years!
4.Die: stainless steel，with high wear resistance and high capacity.
Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.
Raw material:
|
|
|
|
|
|
|
Bamboo |
Sawdust |
Shell |
Straw |
Wood |
1. Brand of Motor: Siemens. it is frequency and has thick copper coil, it won’t be burned due to instantaneous current.
2. Brand of Electric Components: Delixi. international famous brand, has many after-sales sites, can ensure the quality and after-sales timely.
3. Brand of Frequency Converter: INVT
4. Brand of Bearing: HRB workshop.
5. Various Raw Material such as wood, sawdust, bamboo, agricultural straw, leaves, rice husk, peanut shells, alfalfa, efb fiber etc.
6. Main parts roller and die are made from alloy steel or stainless steel to guarantee long service life
7. It is designed with cooling system to ensure continuous working and prevent overheat of the pellet machine over 8 hours, protects electric motor and electrical parts, and eventually lengthen its life span.
Siemens Brand Motor:
Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.

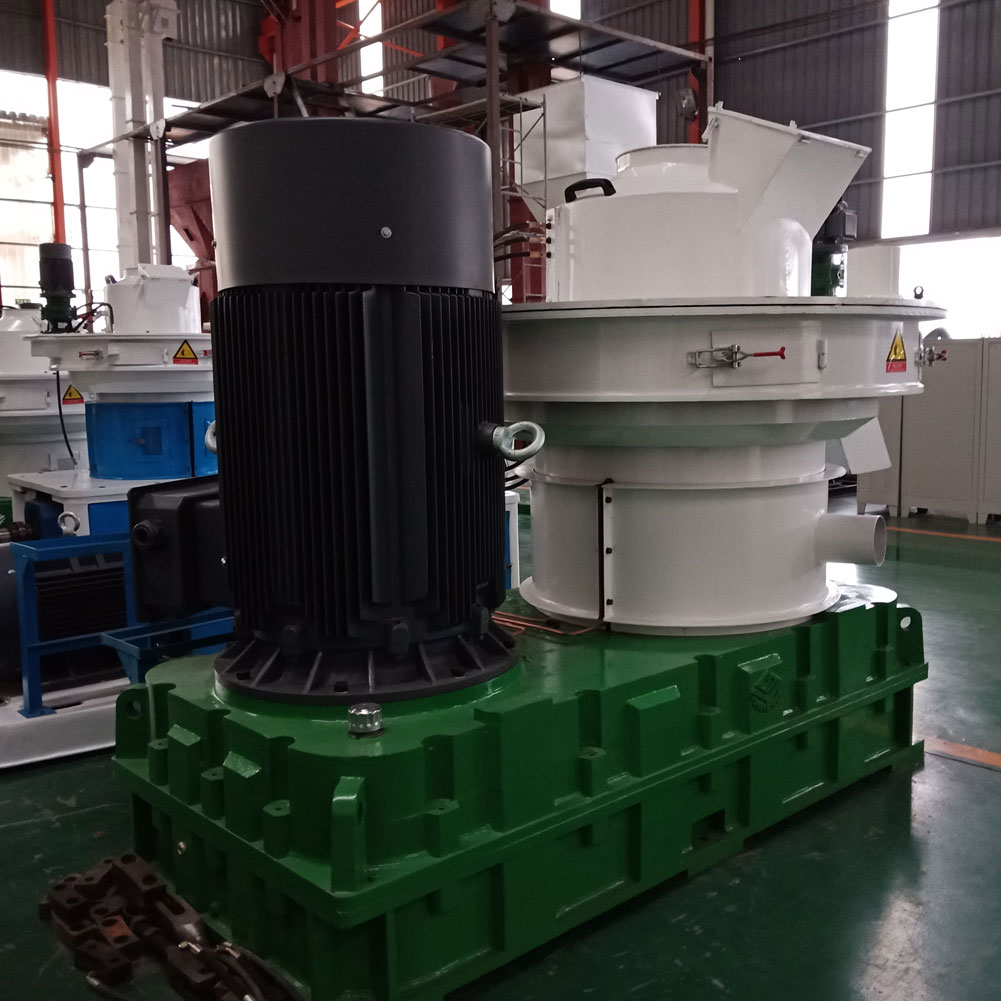

Parallel vertical installation reduce energy consumption loss
The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
|
Die: stainless steel，with high wear resistance and high capacity. Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.
|
|
Cooling System of Gearbox enhance the internal bearing life. Gearbox Lubricant of wood pellet machine adopts bypass water cooling system to avoid oil temperature is too high, greatly enhance the internal bearing life. Casting material of gearbox with high stability Gearbox shell of wood pellet machine adopts casting. Weight of shell is 2.5t. Castings have advantages of good rigidity, good heat dissipation, Low heat distortion and high stability. |
|
Structure of gearbox is easy to maintain.
Gearbox of wood pellet machine supplier has upper and down parts. This design is easy to maintain.
